Modernizing Microsoft Workloads on AWS for Performance, Resilience and Scale
Migrating critical Windows Server and SQL Server workloads to AWS to reduce latency, improve availability and optimize enterprise operations.
The objective of this project was to modernize and optimize Ergos' Microsoft-based application environment by migrating workloads to AWS to address latency challenges, reduce operational overhead, and improve availability and performance.
The customer was running business-critical applications built on Microsoft Windows Server and Microsoft SQL Server, which experienced performance limitations and operational complexity.
The solution involved migrating workloads to AWS using:
- • Amazon EC2 for Windows Server
- • Microsoft SQL Server on EC2
- • Provisioned IOPS SSD (io1/io2)
- • Multi-AZ architecture
- • AWS Backup
- • Amazon S3
- • Amazon CloudWatch
- • AWS IAM
- • AWS Systems Manager
Result: Improved performance, automated operations, enhanced security and enterprise-grade reliability.
About Ergos
Ergos operates data-intensive enterprise applications requiring reliable Windows-based systems and SQL Server databases. Their workloads demand consistent performance, high availability and secure data management.
Client Challenges
Solution Offered
Compute
- • Windows Server EC2 instances
- • SQL Server hosted on optimized EC2
- • Workload-specific instance sizing
Storage Optimization
- • Dedicated OS volumes
- • Database data volumes
- • Transaction log volumes
- • Provisioned IOPS SSD (io1/io2)
- • Encryption enabled
High Availability
- • Multi-AZ deployment
- • Resilience across Availability Zones
- • Service continuity architecture
Monitoring
CloudWatch monitoring with comprehensive metrics:
- • CPU utilization tracking
- • Memory monitoring
- • Disk I/O metrics
- • Network performance monitoring
Alerts:
- • CPU >80% threshold alarms
- • Disk threshold alarms
- • Proactive notifications
Backup
- • AWS Backup automation
- • EBS snapshot protection
- • Amazon S3 backup storage
- • Recovery retention policies
Security
- • IAM controls
- • Restricted RDP access (3389)
- • Internal SQL access restrictions
- • Encrypted EBS volumes
- • AWS Systems Manager patching automation
Detailed Solution Architecture
1. Microsoft Compute Layer
Amazon EC2 instances running Windows Server provide the core compute platform. SQL Server is hosted on dedicated, performance-optimized EC2 instances with workload-specific sizing to ensure consistent throughput for data-intensive enterprise applications.
2. SQL Server Performance Optimization
Storage architecture separates OS, database data, and transaction log volumes using Provisioned IOPS SSD (io1/io2) to eliminate I/O contention. This dedicated volume strategy ensures SQL Server delivers predictable, high-performance query execution and transaction processing.
3. Multi-AZ High Availability Architecture
Multi-AZ deployment ensures resilience across AWS Availability Zones. The architecture provides automatic failover capabilities, eliminating single points of failure and ensuring service continuity for business-critical Windows and SQL Server workloads.
4. Monitoring & Operations Management
Amazon CloudWatch provides comprehensive monitoring across CPU utilization, memory, disk I/O, and network performance. Threshold-based alarms (CPU >80%, disk capacity) trigger proactive notifications, enabling the operations team to respond before issues impact end users.
5. Backup Architecture
AWS Backup automates EBS snapshot creation and management. Amazon S3 provides durable, cost-effective backup storage with configurable recovery retention policies. This eliminates manual backup processes and ensures consistent data protection across all workloads.
6. Security & Compliance
IAM policies enforce least-privilege access controls. RDP access (port 3389) is restricted to authorized networks. SQL Server access is limited to internal application traffic. All EBS volumes are encrypted at rest. AWS Systems Manager automates OS patching to maintain security posture.
7. Operational Efficiency Improvements
- • Reduced manual maintenance tasks
- • Automated patching via AWS Systems Manager
- • Simplified lifecycle management
- • Reduced dependency on hardware operations

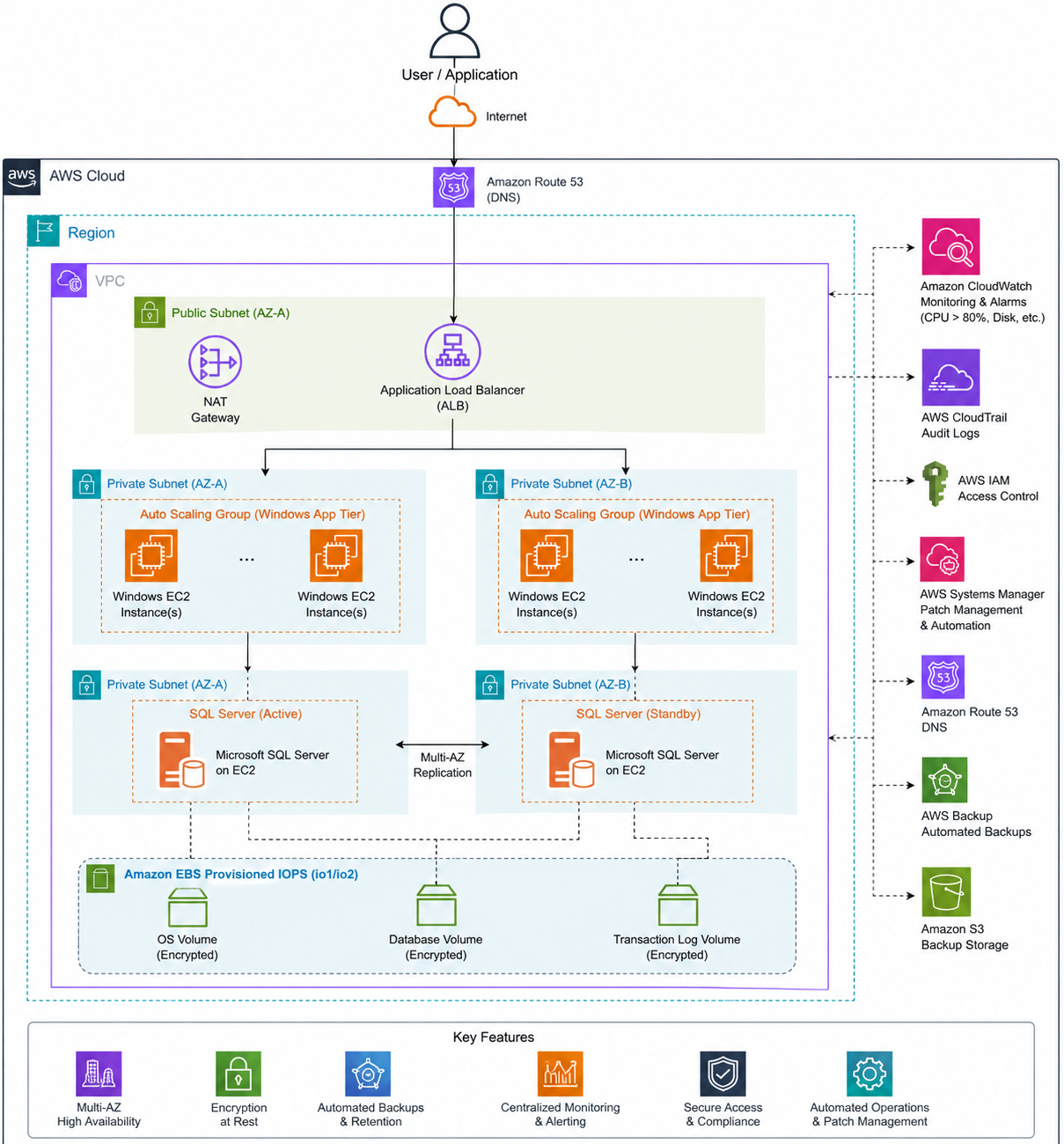

Solution Architect Diagram
Key AWS Services Used
Benefits & Impact
Lower
Latency
Multi-AZ
High Availability
Automated
Backup Protection
Optimized
SQL Performance
Windows EC2 and MSSQL Workloads Self-Assessment
Evaluate your organization's Windows and SQL Server workload maturity on AWS across these key dimensions:
Compute Optimization
Are your Windows EC2 instances right-sized for workload demands?
Storage Architecture
Are OS, data, and log volumes separated with Provisioned IOPS?
High Availability
Is your architecture deployed across multiple Availability Zones?
Monitoring Coverage
Do you have CloudWatch alarms for CPU, memory, disk, and network?
Backup Automation
Are backups automated with defined retention and recovery policies?
Security Posture
Are RDP and SQL access restricted with IAM and encryption enforced?
Patch Management
Is OS patching automated via AWS Systems Manager?
Operational Efficiency
Have you reduced manual maintenance and hardware dependencies?
Final Outcome
The project successfully modernized Ergos' Microsoft workload environment into a secure, scalable and highly available AWS architecture delivering:
- Improved application performance and reduced latency
- Enterprise-grade availability through Multi-AZ deployment
- Optimized SQL Server storage performance
- Reduced operational overhead
- Secure scalable Microsoft workload platform
